Features
■ RoHS compliant*
■ ESD protection >25 kV
■ Low capacitance <0.5 pF
■ Low leakage current <10 nA
Applications
■ HDMI 1.4
■ Digital Visual Interface (DVI)
■ USB 3.0 / USB OTG
■ Memory protection
■ SIM card ports

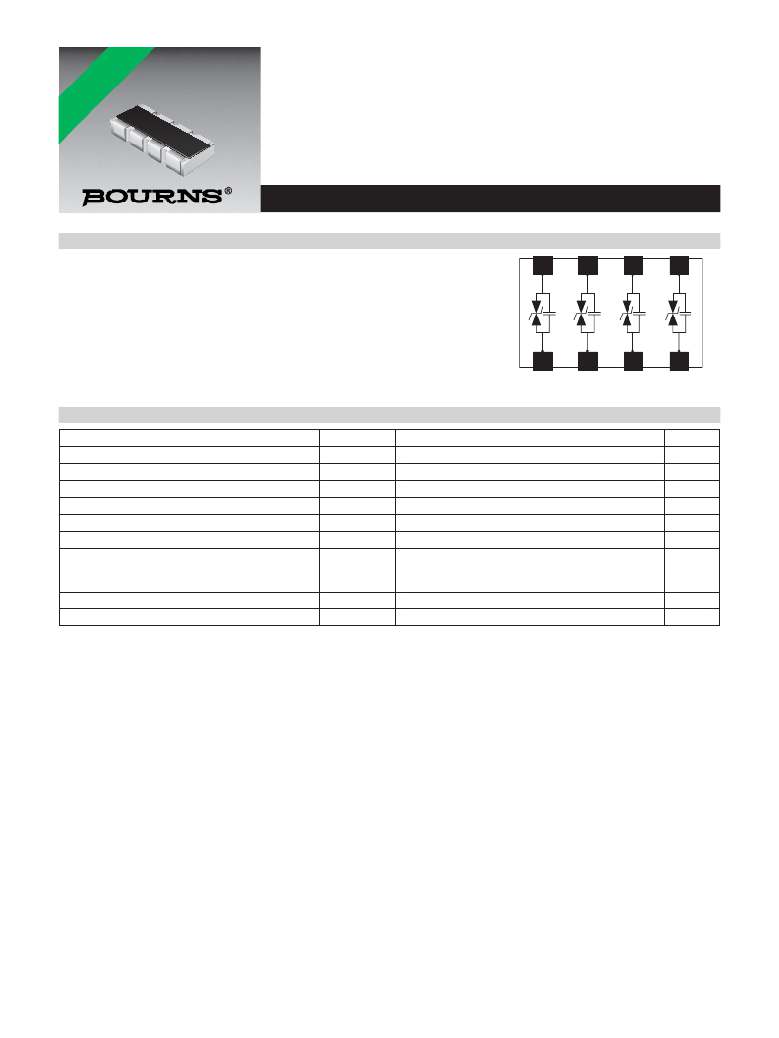

ChipGuard ? CG1206MLC Series - ESD Protector Array
General Information
The ChipGuard ? CG1206MLC Series has been speci?cally designed to protect sensitive
electronic components from electrostatic discharge damage. The MLC family has been
designed to protect equipment to IEC61000-4-2, Level 4 (±8 kV Contact / ±15 kV Air
Discharge) ESD speci?cations targeted for high speed USB 3.0/USB OTG, HDMI 1.4, DVI or
IEEE1394 applications.
The ChipGuard ? CG1206MLC Series has been manufactured to provide low 0.5 pF
capacitance and leakage currents less than 10 nA with excellent clamp qualities, making the
family almost transparent under normal working conditions.
Electrical & Thermal Characteristics @ TA = 25 °C (unless otherwise noted)
Parameter
Typical Continuous Operating Voltage
Typical Clamping Voltage (Note 1)
Maximum Capacitance @ 1 VRMS 1 MHz
Maximum Leakage Current @ Max. VDC
Typical Trigger Voltage (Note 2)
Maximum Response Time
Symbol
VDC
VC
CO
IL
VT
RT
CG1206MLC-12E
12
30
0.5
10
150
1
Unit
V
V
pF
nA
V
ns
ESD Protection: Per IEC 61000-4-2 Level 4
Min. Contact Discharge (>100 Reps)
Min. Air Discharge (>100 Reps)
±8
±15
kV
kV
Operating Temperature
Storage Temperature
TOPR
TSTG
-40 to +85
-40 to +85
?C
?C
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
Speci?cations are subject to change without notice.
Customers should verify actual device performance in their speci?c applications.
